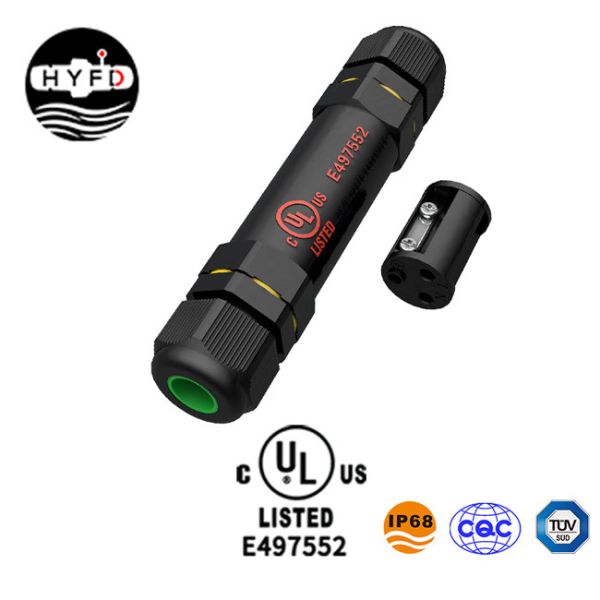

TUV Certified 3 Pins PG13 IP68 Waterproof Cable Connector

Name: TUV Certified 3 Pins PG13 IP68 Waterproof Cable Connector
Brand: HYFD
Price: 1 USD

Brand Name : HYFD

Model Number : PG13

Certification : UL, TUV, CQC, IP68

Place of Origin : Guangdong, China

MOQ : 200/500

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000 pcs per day

Delivery Time : 5~12 days as per order quantities

Packaging Details : 35 sets/bag, 105 sets/carton

Material : Nylon PA66

Color : Black

Protection Level : IP68

Termination : Screw termination

Contact Resistance : ≤5mΩ

Numbers of Pins : 2 pins, 3 pins

Pin Material : Brass

Finish : Nickel

Contact Now

TUV UL Certified IP68 Waterproof Cable Connector Straight Through 2 Pins 3 Pins Outdoor Connector

Specification

Number of Contacts	2 Pin	3 Pin
Rated Voltage	300V	300V
Rated Current	10A	10A
Withstanding Voltage	1500V
Protection Level	IP68
Cable Gague	SJTW 218AWG/ 21.5mm2	SJTW 318AWG/ 31.5mm2
Cable OD	6.0~12.0mm
Opeterating temperature	-40℃~105℃
Termination	Screw Termination
Shell Material	Nylon PA66
Contact Pin Material	Brass
Finish	Nickel
Contact Resistance	≤5mΩ
Diameter	27.5mm
Certificate	TUV, UL, CQC, IP68
Application	Street Light/Tunnel Lamp/ Flood Light

WHY CHOOSE HUAYI-FADA?

Our advantages:

•We can do the designs according to the customers' requirement or drawings.

•We can open you connectors with high quality & reasonable price.

•Promptly delivery, 2~3 weeks after orders.

•Low MOQ: small orders are welcome.

•Rich experience: over 12 years.

•Professional design team.

•Free samples available.

100% Guarantee Qualtiy

•Quality Guarantee: 3 Years

•Manufactured Under Strict Control

•100% Tested (Not Just Batch Tested)

•OEM supplier for Anphenol, Philips (Signify), OSRAM for over 7 Years

TUV Certified 3 Pins PG13 IP68 Waterproof Cable Connector
